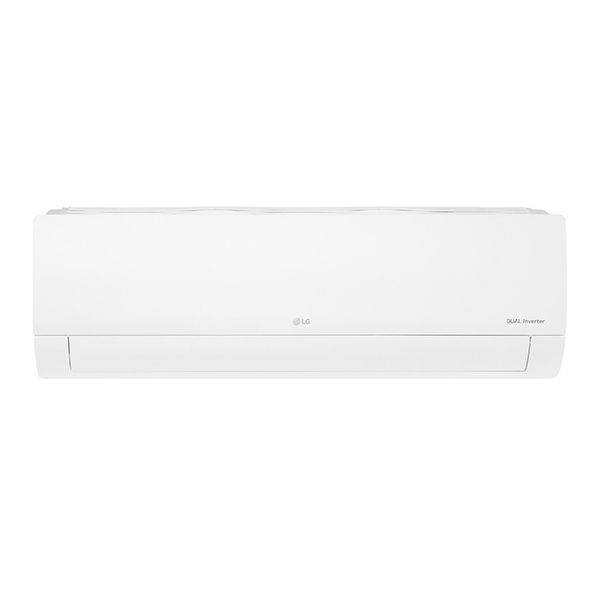

LG Dualcool Inverter Compressor STD 3 HP Cooling/ Heating Energy Saving , Fast Cooling S4-W24K23AE

    galaxy
    Model: S4-W24K23AE
    Manufacturer part number: 011255028
    0
    Rated 0 out of 5 0 customer rating
    (0 Review(s))
    DUAL Inverter compressor / Energy Saving / Fast Cooling / Simple Design and energy display / Less Noise Easy Installation
    Share with your friends
    Availability:

    Out of stock

    30,420.00 EGP
    Add to compare list

    Express Shipping

    Arrive anywhere From 3 to 7 Days

    Return For Free Warranty

    Up to 30 days

    Pay on Delivery

    Cash or Cart

    Dual Inverter Compressor™ With 10 Year Warranty1

    Dual Inverter Compressor™ With 10 Year Warranty

    LG's Dual Inverter Compressor™ solves improper, ineffective and noisy problems, resulting in an air conditioner that cools faster, lasts longer, and runs quieter. With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.
    • Dual Inverter Compressor™1

      Dual Inverter Compressor™

      A compressor with a wider rotational frequency saves more energy and has a faster cooling range.

    • 10 Year Warranty1

      10 Year Warranty

      Verification obtained from TUV Rheinland for 10-year product life cycle.

    • TUV Rheinland1

      TUV Rheinland

      TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(US-W242Kxy0/TS-H2465DA0).

    <h3 class="text-normal">Energy Saving</h3>3

    Energy Saving

    Inverter Compressor constantly adjusts a compressor's speed to maintain desired temperature levels. Moreover, Dual Inverter Compressor™ with power saving operation range frequency saves more energy than conventional compressor.
     Watch the Full Movie
    <h3 class="text-normal">Fast Cooling</h3>3

    Fast Cooling

    LG air conditioner begins cooling the air fast using its high speed cooling range with Dual Inverter Compressor™, so it expels air farther and cool spaces faster.

     Watch the Full Movie
    Simple and Slim Design with Hidden Display1

    Simple and Slim Design with Hidden Display

    LG air conditioner‘s slim and modern design makes easy installation and convenient cleaning with EZ sliding filter. Moreover large hidden display is perfect for checking your energy display conveniently.
    <h3 class="text-normal">Low Noise</h3>3

    Low Noise

    LG air conditioners operate at low sound levels, thanks to LG's unique skew fan and Dual Inverter Compressor™ which eliminate unnecessary noise and allow for smooth operation.
     Watch the Full Movie
    Quick and Easy Installation1

    Quick and Easy Installation

    LG air conditioners are designed for easier and more efficient installation, regardless of the surroundings and the number of persons involved in the installation process. By reducing the manpower and time required for installation, it is now possible to install more air conditioners at more homes in a shorter period of time.
    • Vertical 6 Steps Louver Control1

      Vertical 6 Steps Louver Control

      Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

    • Dual Protection Filter1

      Dual Protection Filter

      The Dual Protection Filter captures large dust particles.

    • Comfort Sleep1

      Comfort Sleep

      Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic) ,with the simple click of one button.
    • <h3 class="text-normal">Auto Cleaning</h3>1

      Auto Cleaning

      The comprehensive auto cleaning function prevents the forming of
      bacteria and mold on the heat exchanger and thus provides a more
      pleasant and comfortable environment for the user.

    • Gold Fin™1

      Gold Fin™

      The Gold Fin™ ensures that the surface is more resistant to corrosion
      and enhances the durability of heat exchanger for a much longer period.

    • Jet Dry1

      Jet Dry

      Jet Dry technology places priority in dehumidification for areas with high humidity levels to keep your room dry and fresh.

    • Fast Heating1

      Fast Heating

      4 Way Auto Swing adjusts airflow based on the surrounding environment, allowing for optimal distribution of warm air to living areas and enabling quick heating.

    DIMENSIONS

    S4-W24K23AD

    SUMMARY

    • DIMENSION MM
      998 × 345 × 210
    • CAPACITY [BTU]
      24000
    • MAIN TECHNOLOGY
      60% More Energy Saving With 30% Quick Cooling
    • EXTRA SPEC
      10 Years Compressor Warranty

    GENERAL SPECIFICATION

    • Capacity Cooling (Min ~ Rated ~ Max)
      1.08 ~ 6.45 ~ 7.03 KW
      3,685 ~ 22,000 ~ 23,500 Btu/h
      Capacity Heating (Min ~ Rated ~ Max)
      1.08 ~ 6.59 ~ 6.95 kW
      3,685 ~ 22,485 ~ 23,710 Btu/h
    • Power Input - Cooling (Min ~ Rated ~ Max)
      240 ~ 2,040 ~ 2,350 W
      Power Input - Heating (Min ~ Rated ~ Max)
      240 ~ 1,900 ~ 2,350 W
    • Running Current - Cooling (Min ~ Rated ~ Max)
      1.12 ~ 9.56 ~ 11.01 A
      Running Current - Heating (Min ~ Rated ~ Max)
      1.12 ~ 8.90 ~ 11.01 A
    • EER
      3.16 W/W
      10.78 (Btu/h)/W
      WEER
      17.27 (Btu/h)/W
    • COP
      3.47 W/W
      11.83 (Btu/h)/W
      Cooling / Heating (Additional Charge)
      - / A++++
    • Power Supply
      1, 220, 50 (Φ/V/Hz)
      Available Voltage Range
      187 ~ 253 V
    • Power Factor - Cooling
      97%
      Power Factor - Heating
      97%
    • Moisture Removal
      2.3l/h
      Indoor - Air Flow Rate (Cooling, Max/H/M/L)
      20/15/13.0/10.5 m³/min
    • Indoor - Air Flow Rate (Heating, Max/H/M/L)
      20.5/17.6/13.5/11.0 m³/min
      Indoor - Sound Pressure Level (Cooling, Max/H/M/L/SL)
      -/47/42/34/31 dB(A)
    • Indoor - Sound Pressure Level(Heating, H/M/L)
      -/47/42/34 dB(A)
      Indoor - Dimensions (W × H × D) - Net
      998 x 345 x 210 mm
    • Indoor - Dimensions (W × H × D) - Shipping
      1053 × 424 × 278 mm
      Indoor - Weight (Net)
      12.2 kg
    • Indoor - Weight (Shipping)
      14.4 kg
      Indoor - Exterior Color Code
      Munsell 7.5BG 10/2 (RAL 9016)
    • Outdoor - Air Flow Rate (Max)
      49.0m³/min
      Outdoor - Fan Motor Speed - Cooling, Min ~ Max
      550 ~ 850 rpm
    • Outdoor - Fan Motor Speed - Heating, Min ~ Max
      550 ~ 850 rpm
      Outdoor - Sound Pressure Level (Cooling, Rated)
      55 dB(A)
    • Outdoor - Sound Pressure Level (Heating, Rated)
      56 dB (A)
      Outdoor - Dimensions (W × H × D) - Net
      870 × 650 × 330 mm
    • Outdoor - Dimensions (W × H × D) - Shipping
      1045 × 710 × 458 mm
      Outdoor - Weight (Net)
      44.5 kg
    • Outdoor - Weight (Shipping)
      51.5 kg
      Outdoor - Max. Fuse Size
      20A
    • Outdoor - Exterior Color Code
      Munsell 9.54Y 8.34/1.31 (RAL 9001)
      Outdoor - Operation Range (Cooling)
      18 ~ 48 °C DB
    • Outdoor - Operation Range (Heating)
      -5 ~ 24 °C DB
      -5 ~ 18 °C WB
      Circuit Breaker
      20 A
    • Power Supply Cable
      3 x 2.5 (No. x mm²)
      Power Supply to Unit
      Outdoor
    • Power and Communication Cable
      4 x 1.0 (No. x mm²)
      Piping - Size (Liquid)
      Ø 6.35 mm
    • Piping - Size (Gas)
      Ø 15.88 mm
      Piping - Connections Method (Indoor/Outdoor)
      Flared
    • Drain Hose Size - O.D, I.D
      21.5,16.0 mm
      Between Indoor & Outdoor - Piping Length (Min/Standard/Max)
      3/7.5/30 m
    • Between Indoor & Outdoor - Piping Length (No Charge)
      3.5 m
      Between Indoor & Outdoor - Max. Elevation Difference
      15 m
    • Between Indoor & Outdoor - Piping Connection Heat Insulation
      Both liquid and gas pipes
      Refrigerant - Type
      R410A
    • Refrigerant - Pre Charge
      1350 g
      Refrigerant - Additional charge
      20 g/m
    • Refrigerant - Control
      Electronic Expansion Valve
      Refrigerant - Global Warning Potential
      2087.5
    • Refrigerant - t-CO₂ eq
      2.818
      Product Type
      STD
